XM Cloud - Could not load file or assembly 'System.Net.Http.Formatting' or one of its dependencies

Hello Folks,

Today's blog post is to share one of the weirdest behavior i came across while working with Sitecore XM Cloud head repository.

I worked on it for couple of days, Created new projects for custom resolver and tested everything in local, and all the time i was using publishing profile and it was just working fine.

But out of the blue my local started getting below exception

Could not load file or assembly 'System.Net.Http.Formatting' or one of its dependencies. The located assembly's manifest definition does not match the assembly reference. (Exception from HRESULT: 0x80131040)


Looking at error you generally match dll versions, web.config had different bindings and bin also had same file but somehow my docker->deploy->Platform->bin was getting 5.2.6.0 version instead of 5.2.7.0

but suddenly i realized, my docker->deploy->Platform->bin should only have those DLLs which are my custom code, my project DLLs but it had all DLLs and that broke the whole site

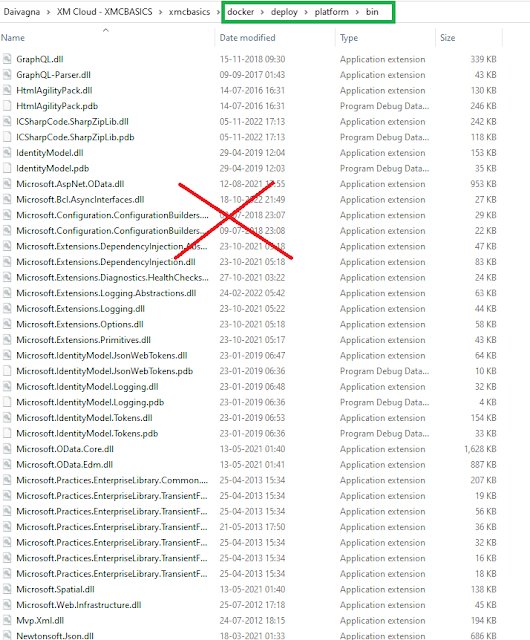

So actual issue was my docker->deploy->platform->bin folder should only have those file which are either of custom projects & platform DLLs, but in my bin i had all sorts of DLLs being copied, see below screenshot, Instead of all DLLs, it should only have my custom DLLs of project.




So, I tried below steps

1) I cleared package manager cache

2) Removed all reference of the project from platform & again redeployed

3) I changed from debug to release in publish profile configuration like below

<LastUsedBuildConfiguration>Release</<LastUsedBuildConfiguration>

3) Deleted BIN and changed the publish folder path in my config to something else instead of platform, as out of the clue just wanted to see there is nothing related to that, but with my surprise it only copied my custom DLLs

4) I cleaned the project and build it again & republished again, and the most wired thing, it copied all those DLLs again and again i run into DLL hell issue of YSOD

Out of the clue i reached out to SLACK channel & Sitecore support for this behavior and they acknowledged that it is a bug currently in publishing profile & if you do not change anything and deploy, it copies all the DLLs & publishing profile target's are not working as expected.

Following is my OOTB platform.wpp.targets file which shipped with head repository

https://github.com/sitecorelabs/xmcloud-foundation-head




Issue is with line no.16 where the " <Target Name="ExcludeSitecoreAssemblies" AfterTargets="Compile">"

If you remove that line completely and make sure to restart your visual studio and do Clean & Publish, it will not only copy needed DLLs and everything will work

So finally my wpp file looks like below (Make sure to restart VS studio after the change)

As you can see in above image Target node is removed and now if i close my visual studio and do clean & build and publish again, it is only copying needed DLL and no more DLL hell issues


Key take away & solution

1) Target tag which is available OOTB in wpp file works unpredictable

2) Publishing profile is misleading because, Sometime it works when we apply filter only when compilation happened, if no changes to the project it will publish everything.

3) You have to remove Target tag from the wpp file & restart visual studio to make it work.

NOTE: This was registered as a bug in Sitecore bug tracking system and reference number for this bug is 582640

I hope this will help other do not end up in the same issue as i did
